Devices
The hardware we build for Megasquirt: a touch dash for the dashboard, and the CAN converter that feeds it. Both flash straight from the browser and are configured from a phone over Bluetooth.

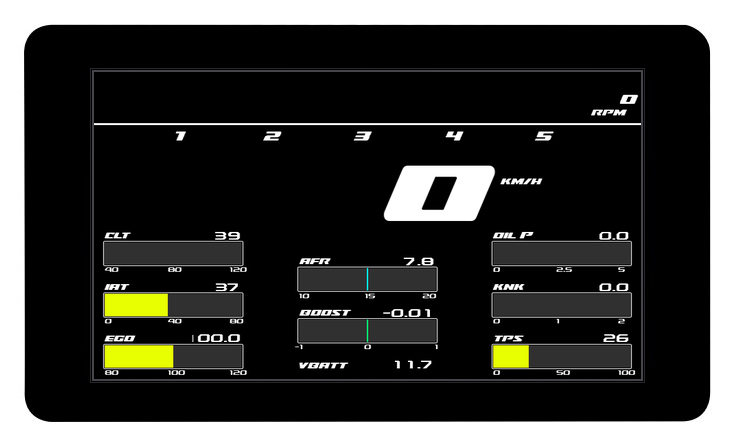

AvailableMS3 Touch Dash 7"
7" touch · 800×480 · ESP32-S3
Touch dashboard for Megasquirt MS3/MS3-Pro: real-time engine data over CAN, warning thresholds, lap timing and logging to your phone.
DetailsAvailable
MSPRO CAN converter
ESP32-S3 · 16 signals · BLE + WiFi
The box between the car and the dash: its own 0-5 V, pulse and switch inputs, data from an ELM327 OBD2 dongle, an ignition analyser and a MYLAPS timing-loop detector. Configured and flashed from a phone.
Open the converter
